Daystar
With its advanced technology, the Daystar brings you both “infrared heat” and “forced air heat” by adopting a dual heating system.
The Daystar with its well-honed technology is perfect for spot space heating in a large open area.
Weighing only 40 pounds, the Daystar is ultra portable and can be used virtually anywhere you need to stay warm, indoors and out.
Advantages
Specifications
Applications
Diagrams
Downloads
ADVANCED TECHNOLOGY - “Daystar” provides perfect heating with its well-honed technology for spot space heating in a large open area.
HIGH EFFICIENCY - The “Daystar” will usher in a new era of high efficiency ‘oil fired’ space heating with 100% heat recovery from the oil burnt.

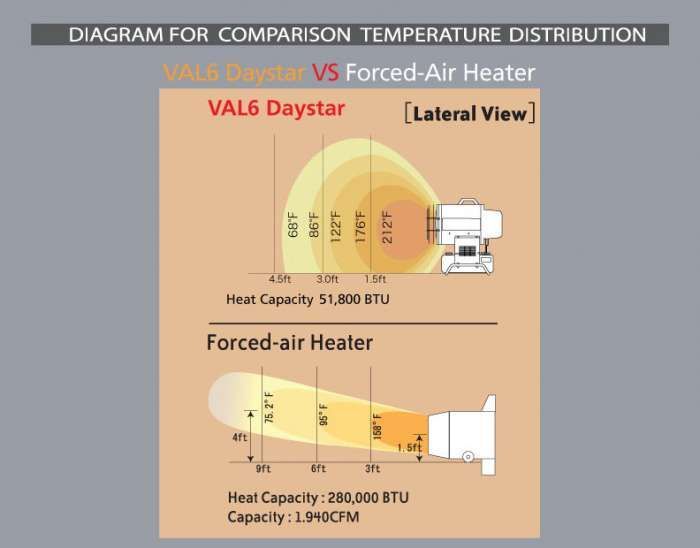

DUAL HEATING SYSTEM - The “Daystar” expands the “VAL6” world by adopting the dual heating system of radiant heat and forced air heat.
VERSATILE - Every “VAL6 series” oil heater can be operated by diesel (#1) or kerosene.
ULTRA PORTABLE - Weighing only 40 pounds, the Daystar is ultra portable and can be used virtually anywhere you need to stay warm, indoors and out.
| Spec | Daystar |
|---|---|
| Heat Output | 51,200 BTU/hr (15 kw) |
| Fuel Consumption | 0.40 gallons/hr |
| Fuel | Diesel or Kerosene |
| Tank Capacity | 2.6 gallons |
| Power Source | 120 V, 60 Hz single phase |
| Power Consumption | 120 W |
| Control System | 5sec.Prepurge 330sec.Postpurge |
| Safety Device | Photocell flame monitor, 3A Fuse, Overheat prevention system, Tip-over switch |
| Burner Type | High pressure spray gun type |
| External Dimensions (HxWxD) | 23.4x12.2x22.8 (inch) |
| Dry Weight | 40 lbs |
| Type | Infrared Radiant Heater |
| Carbon Monoxide Density | 0ppm |
| Operating Noise Level | 61.1 dB(A) |
Below are practical applications of how Daystar can serve you and your needs.
- Heating source in your garage
- Patios & porches
- Factories, workshops, & warehouses
- Any outdoor activities
