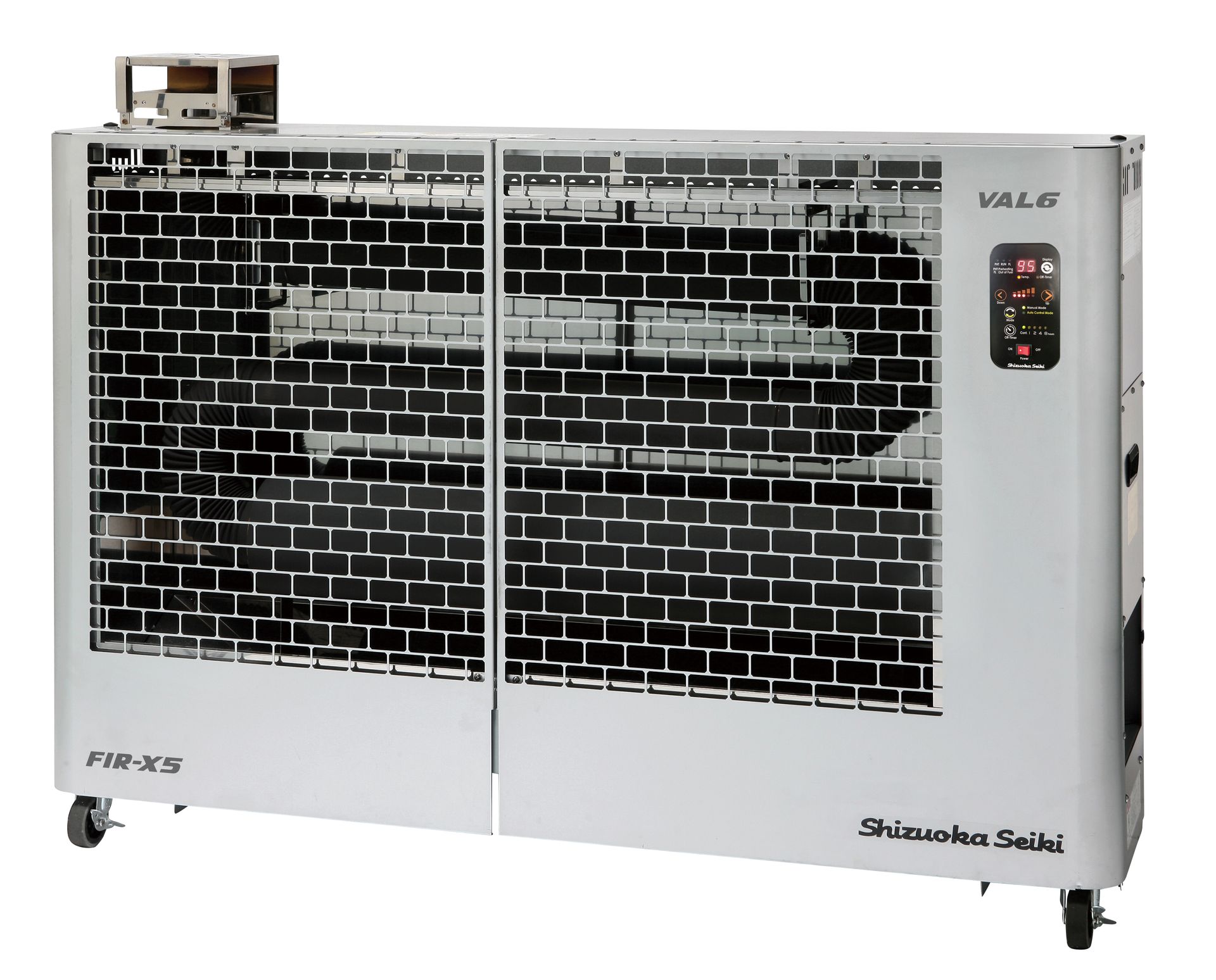

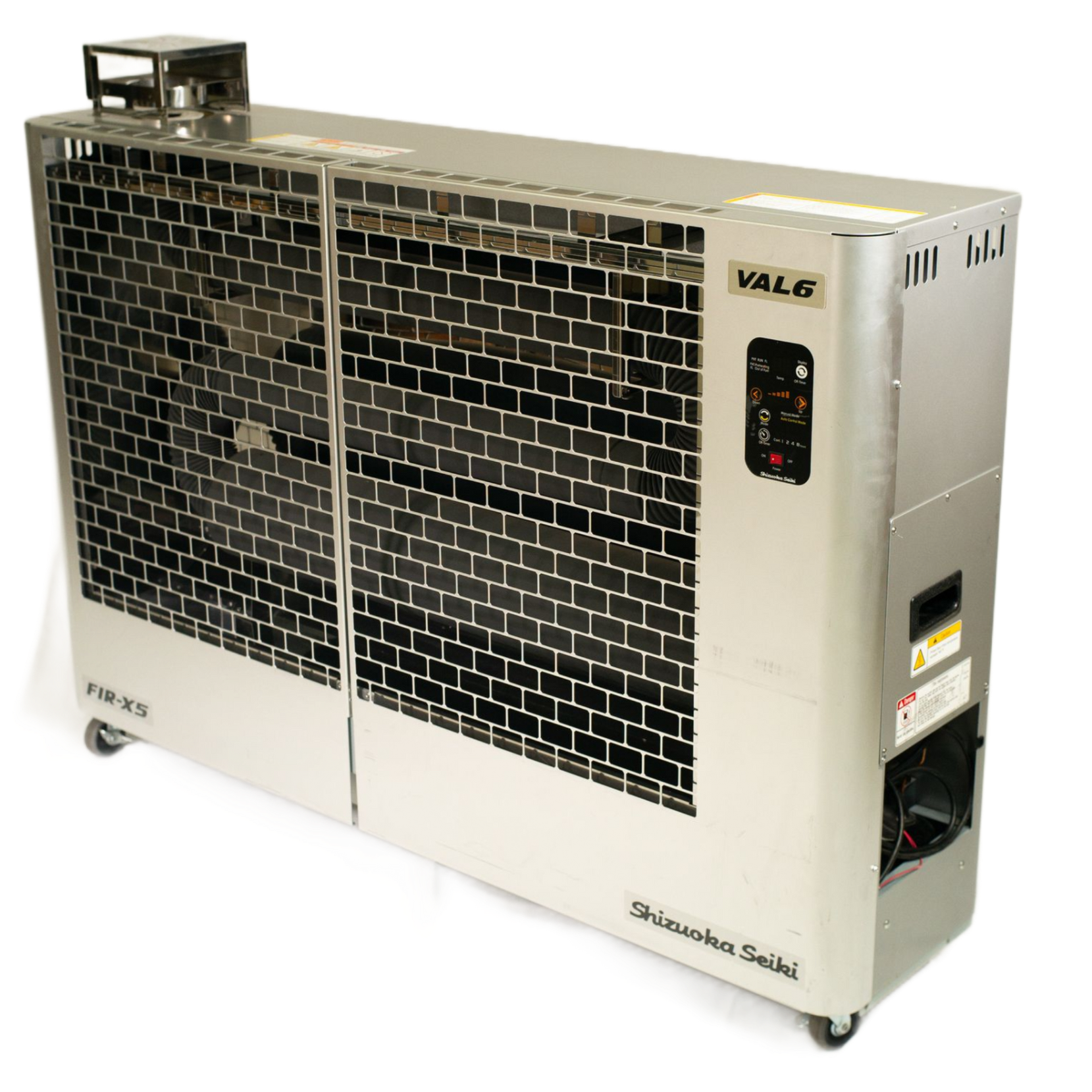

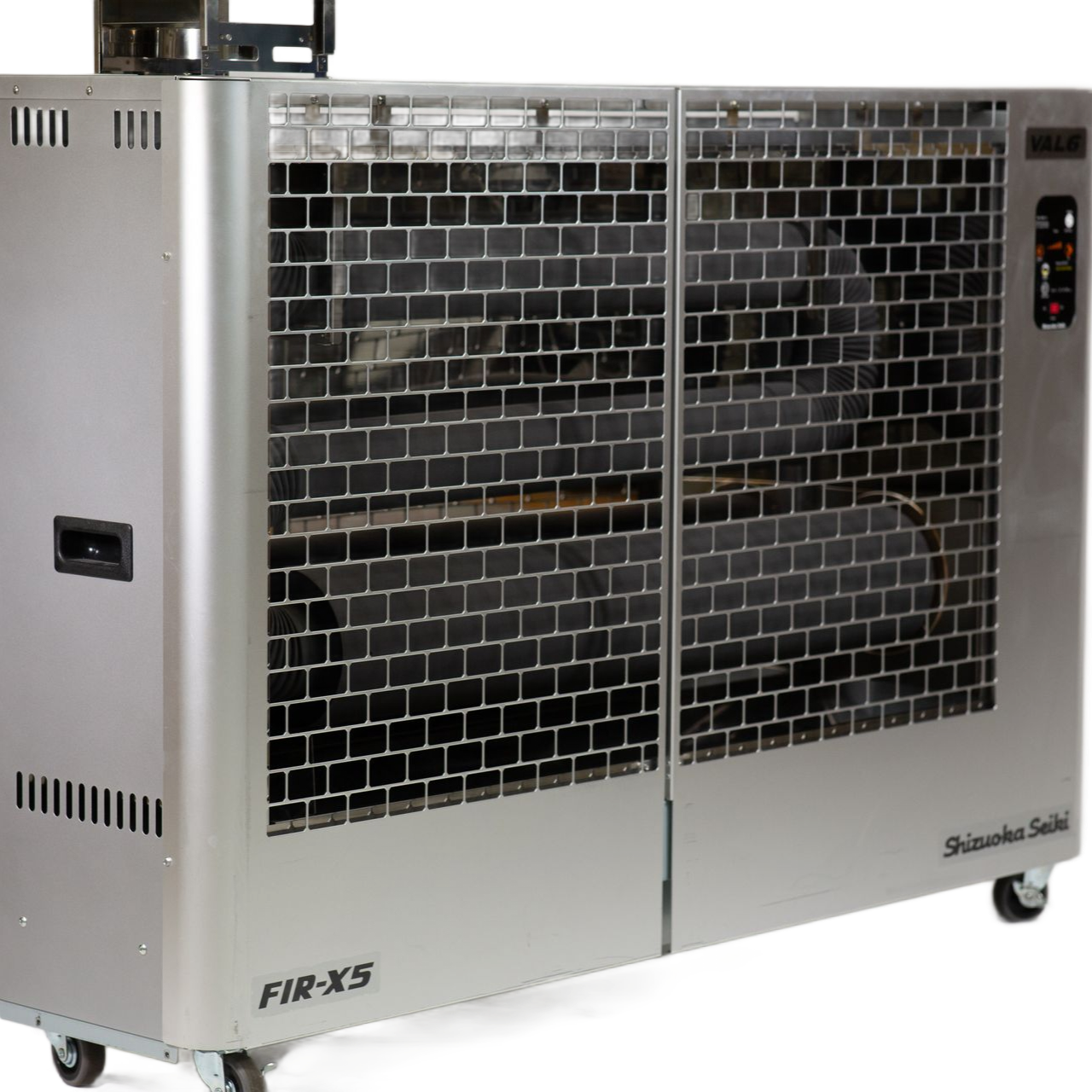

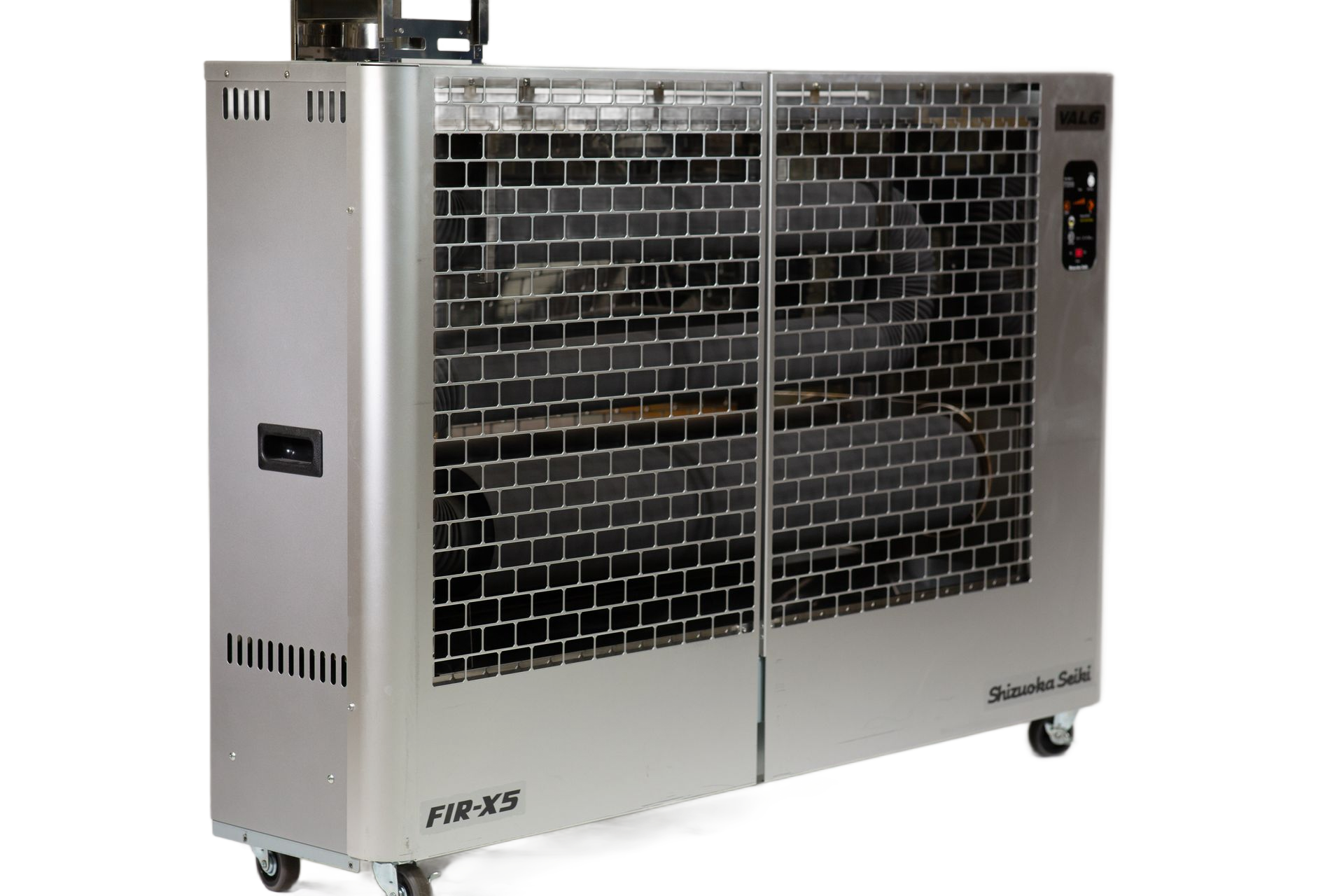

Fir - x5
Utilizing the unique characteristics of Far-Infrared Rays, VAL6 can now truly reach every market.
Compared to Near-Infrared, Far-Infrared exists on a completely different part of the electromagnetic spectrum. Unique characteristics that set it apart from other wavelengths that may contribute to higher heat absorption.
Featuring Intelligent Control by continuously adapting intensity to the environment, X5 can avoid full shut-off heat cycles.
Advantages
Specifications
Applications
Downloads
Combustion Tube: Benefits over Radiation Disk design
• Enclosed Flame
• Greater Surface Area
• Lower surface temperature
• Low Operating Noise
World-Class VAL6 efficiency has advanced even farther with X5. Leading to greater fuel savings.
Equipped with a state-of-the-art combustion control system, X5 will intelligently modulate intensity in order to maintain the target temperature with enhanced precision.
- Hotspots have now been eliminated with X5’s balanced heat. Safety and Proximity have been maximized without compromising on heating performance.
| Spec | FIR - X5 |
|---|---|
| Heat Output | 60,100 ~ 75,100 BTU/h (17.6 ? 22 kw) |
| Fuel | Diesel or Kerosene |
| Fuel Consumption | 0.42~0.53 Gal/hr |
| Tank Capacity | 8 Gallons |
| Continuous Operating Time | 14~17 Hours |
| Power Source | 120V 60Hz |
| Power Consumption (in ignition) | 65 W |
| Power Consumption (in operation) | 31~45 W |
| External Dimensions | 46 x 59.6 x 13.6 (inch) |
| Safety Features | Flame Monitor, Overheat Protection, Tip-Over Switch, Motor Overheat Protection, Fuse, Motor Rotation Detection, High/Low Voltage Detection, |
| Carbon Monoxide Density | 0ppm |
| Type | Far Infrared Heater |
| Operating Noise Level | 52?56dB(A)?Level1?6? |
Below are practical applications of how EPX can serve you and your needs.
- Heating in a large warehouse
- Warming up machines and personnel
- Winter construction: heats up materials, machines, and working sites
- Surface drying
- Personal heating
