FIR1300-A

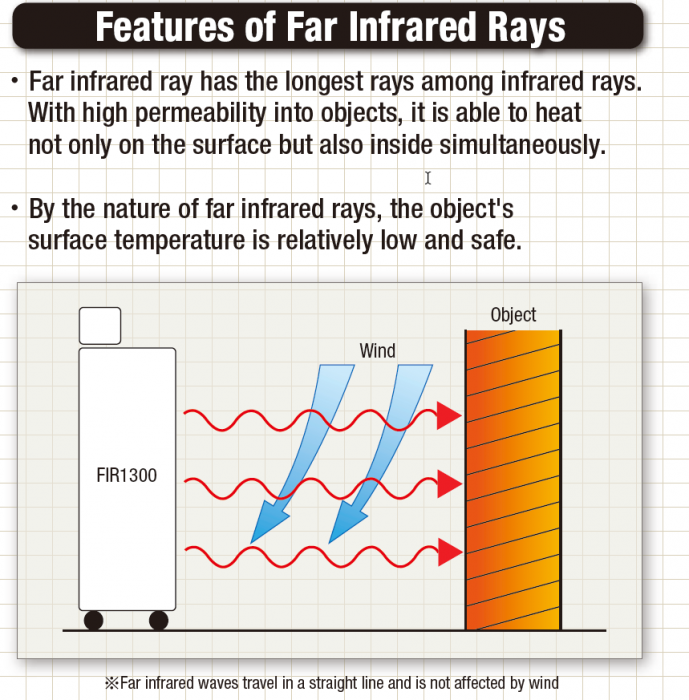

FIR1300 is the Val6 Series' Far-Infrared heater. With safer and deeper heat penetration with less intensity, Val6 can be used in a wider range of environments than ever before.

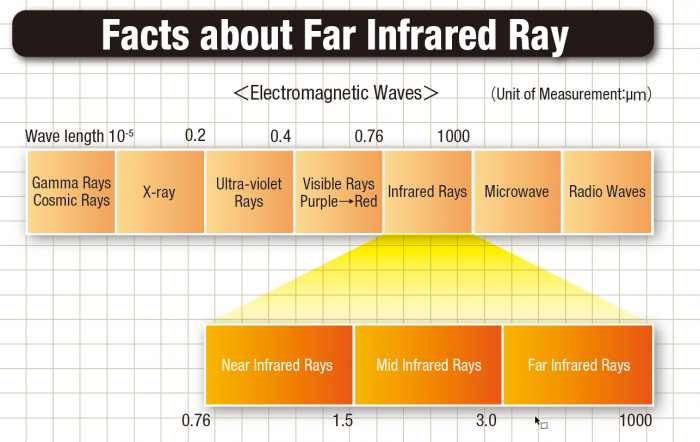

By tuning the frequency of infrared-radiation specifically to our bodies and surroundings, FIR1300 is the most efficient, "people friendly" Val6 ever.
FIR1300 features a closed-flame design that makes the heater suitable for indoor envioments, Supplemented with a clean exhaust and low noise design that allows for quiet operation in any enviroment.
A built-in thermostat keeps the space at the perfect comfortable temperature all the time.
New · Fuel Savings Calculator
Infrared vs. Convection:
Calculate Your Annual Heating Cost
Answer four quick questions about your building to compare infrared and convection heating costs, and see how many VAL6 heaters the space needs.
Advantages
Specifications
Applications
Diagrams
Downloads
LARGER SURFACE AREA - Compared to traditional VAL6 that uses a radiation disk design, this tube-style radiation surface offers much greater surface area resulting in higher thermal efficiency than other VAL6
CLOSED-FLAME DESIGN - The enclosed burner allows the heater to be used and accepted into a wider range of use-cases as closed flame heaters are regulated differently than traditional, Open-Flame heaters.
SAFETY - The outer surface of the heater stays warm to the touch, reducing the risk of burns from contact with the heater.
CLEAN EXHAUST - Due to the high efficiency of the FIR1300, the exhaust contains undetectable ammounts of Carbon Monoxide. Greatly increasing where VAL6 can be used.
BUILT IN THERMOSTAT – The surrounding temperature can be maintained with the built-in thermostat. An external thermostat can also be attached via a connector to control temperatures that are a distance away.
| Spec | FIR1300-A |
|---|---|
| Heat Output | 52,000 BTU/hr (15.2kw) |
| Fuel | Diesel or Kerosene |
| Fuel Consumption | 0.38 gallons/hr |
| Tank Capacity | 8 gallons |
| Continuous Operating Time | 20 hours |
| Power Source | AC 120V 60Hz |
| Power Consumption (in ignition) | in ignition : 85W |
| Power Consumption (in operation) | in burning : 60W |
| External Dimensions (HxWxD) | 45.3(H)x36.2x12.6 (inch) |
| Safety Devices | Flame monitor, Overheat protection, Motor overheat protection, Tip-over switch, Fuse |
| Carbon Monoxide Density | 0 ppm |
| Operating Noise Level | 50 dB (A) |
| Type | Far Infrared Heater |

Below are practical applications of how FIR1300 can serve you and your needs.
- Providing heat for event sites
- Heating for stores
- Factories and warehouses
- Indoor and Outdoor heating
- Safer heating near people and animals
