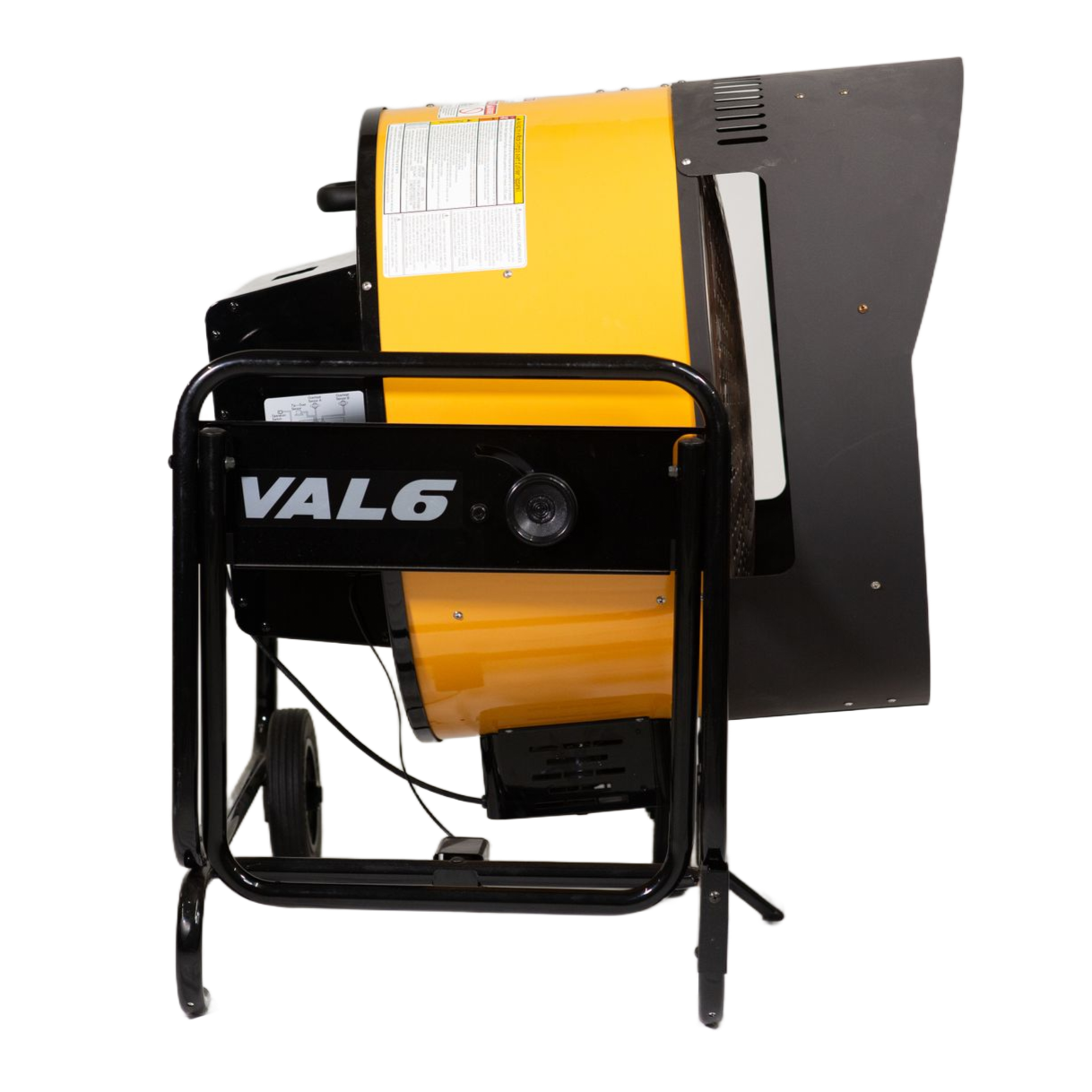

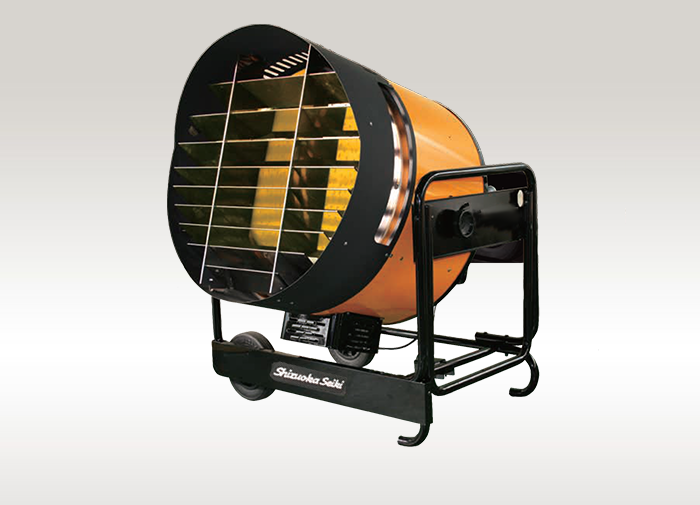

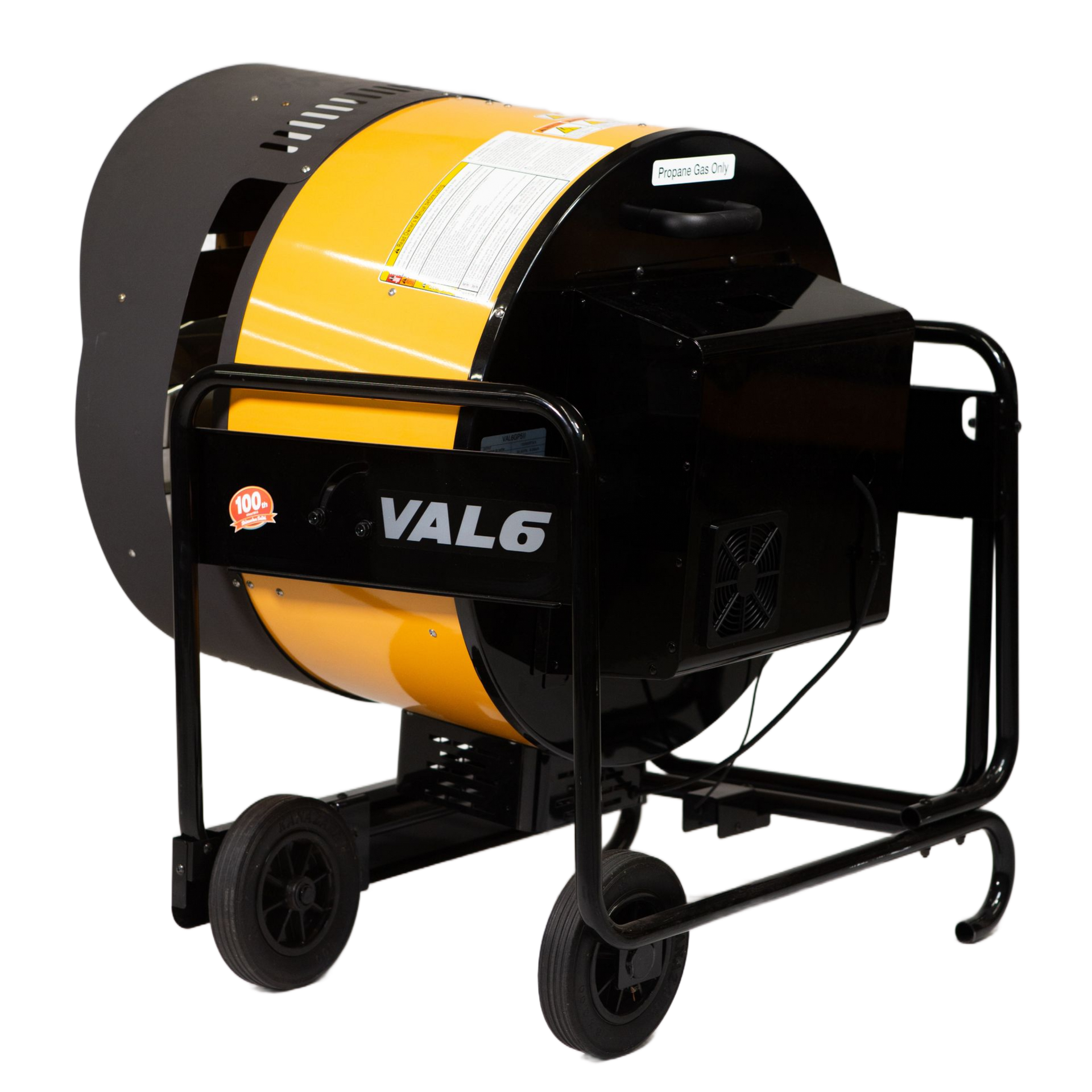

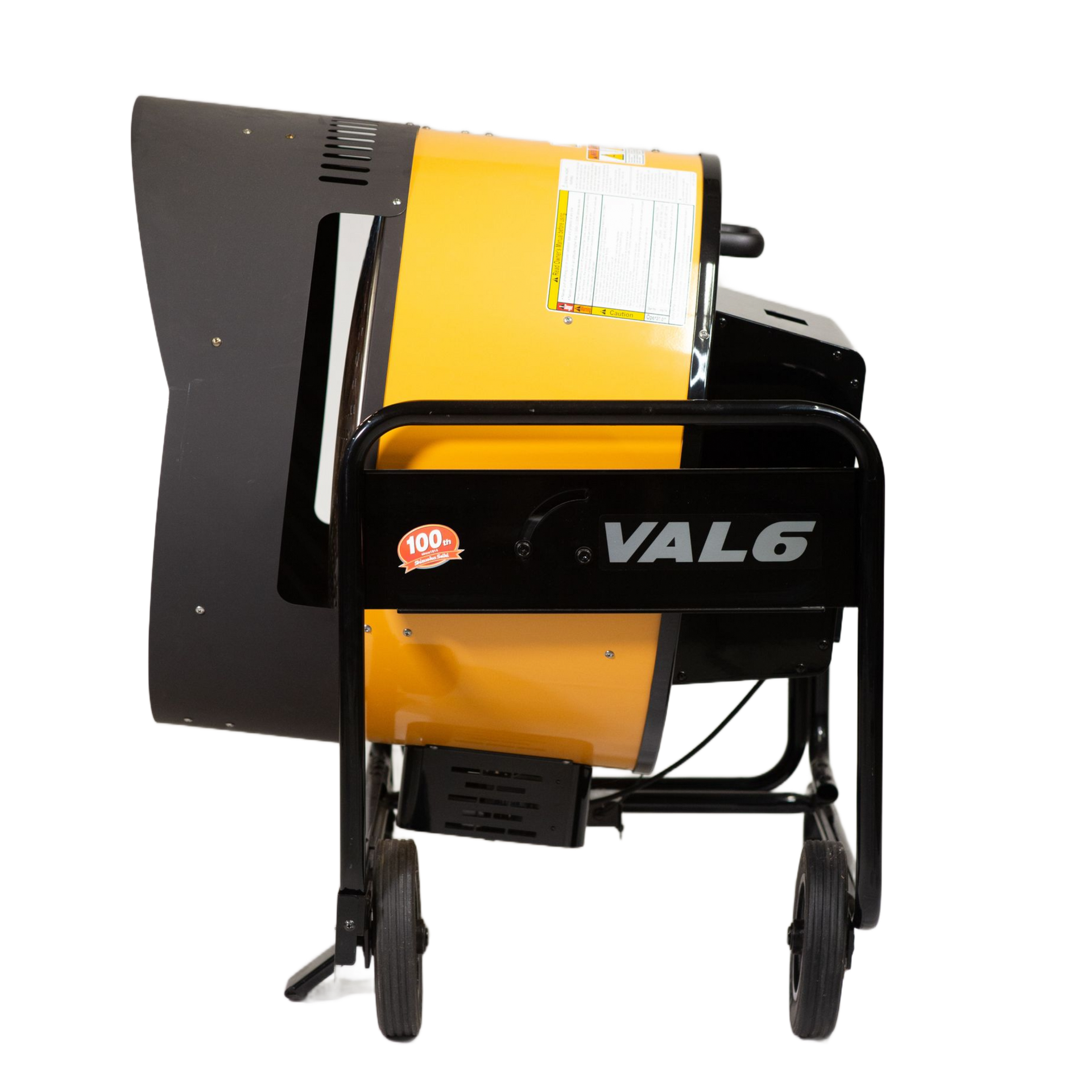

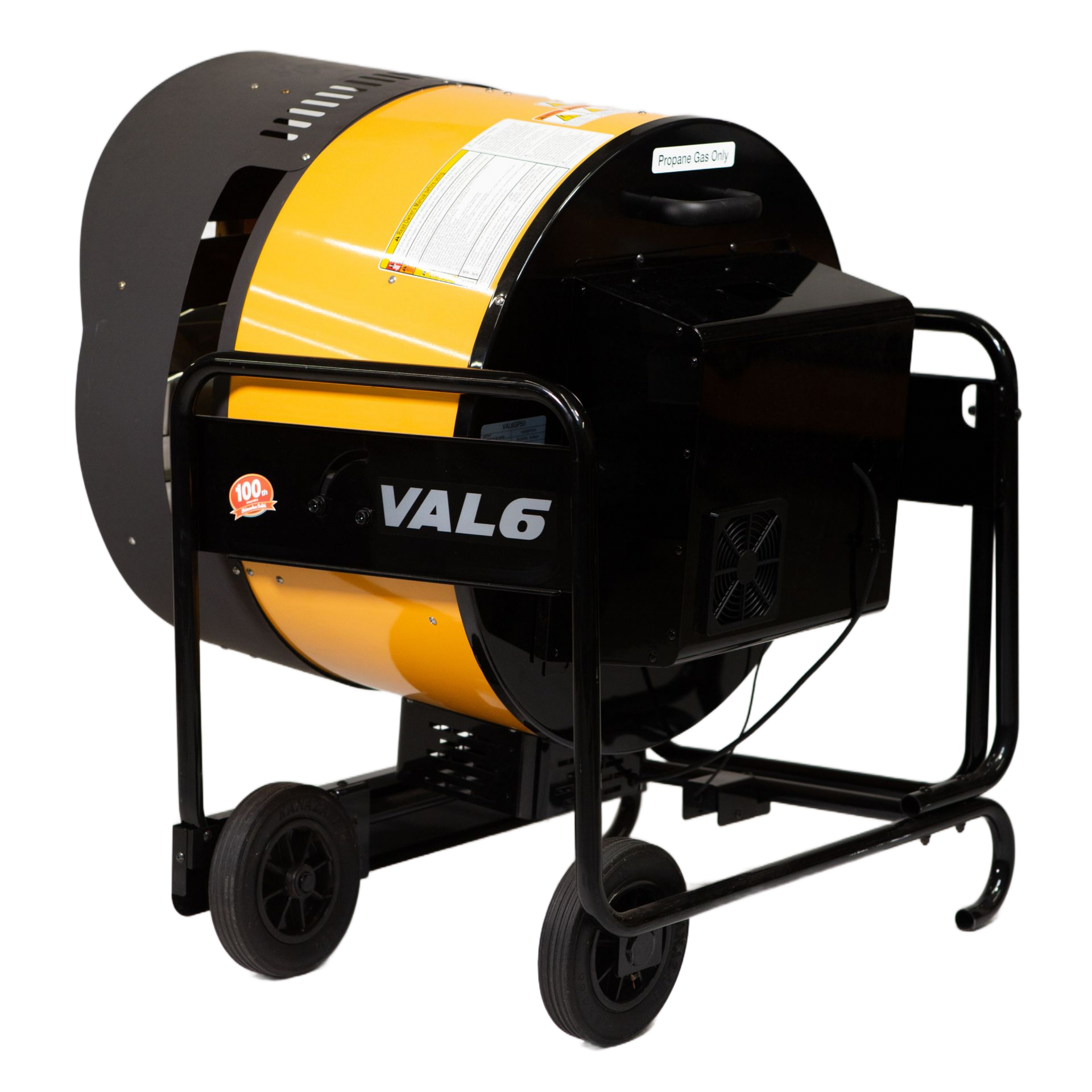

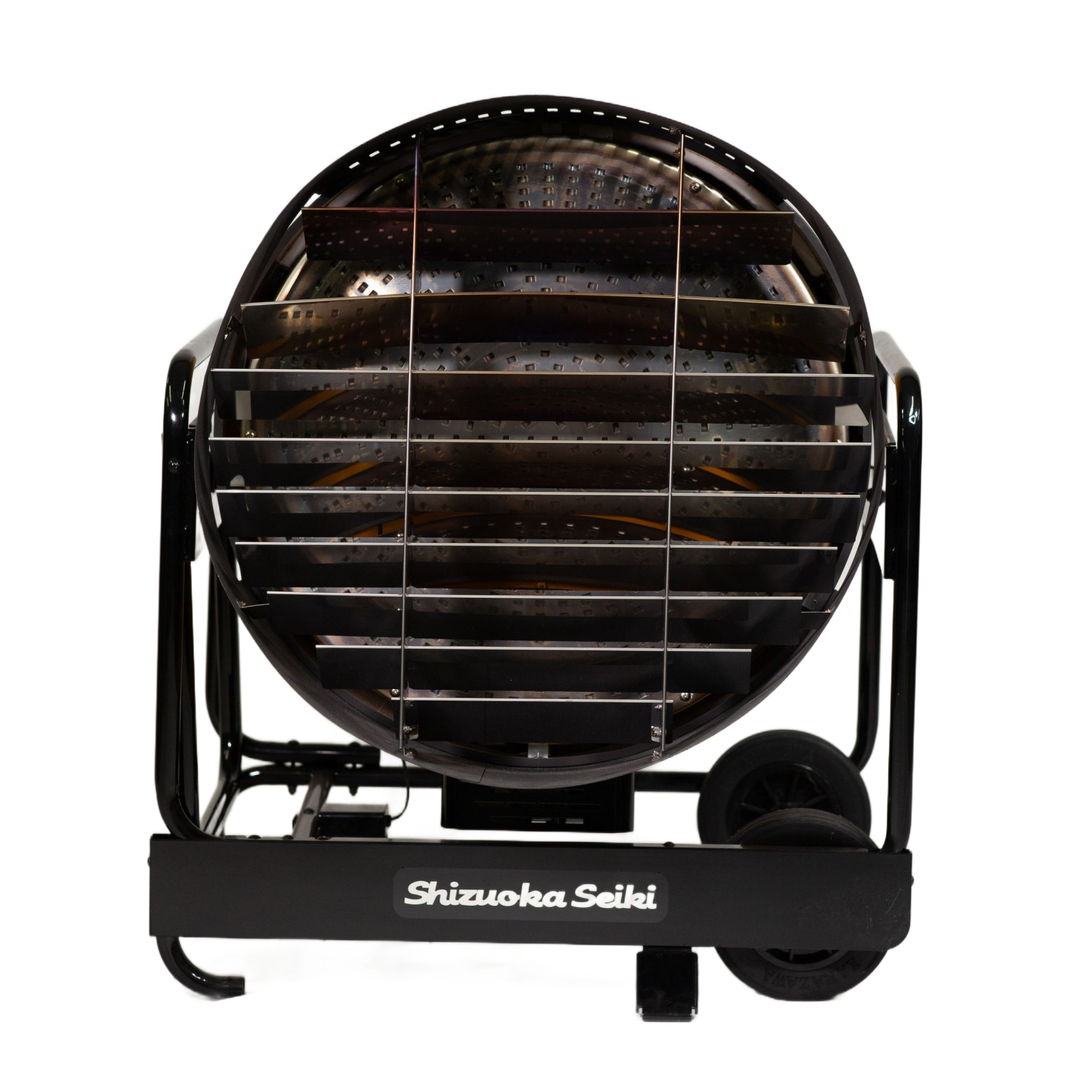

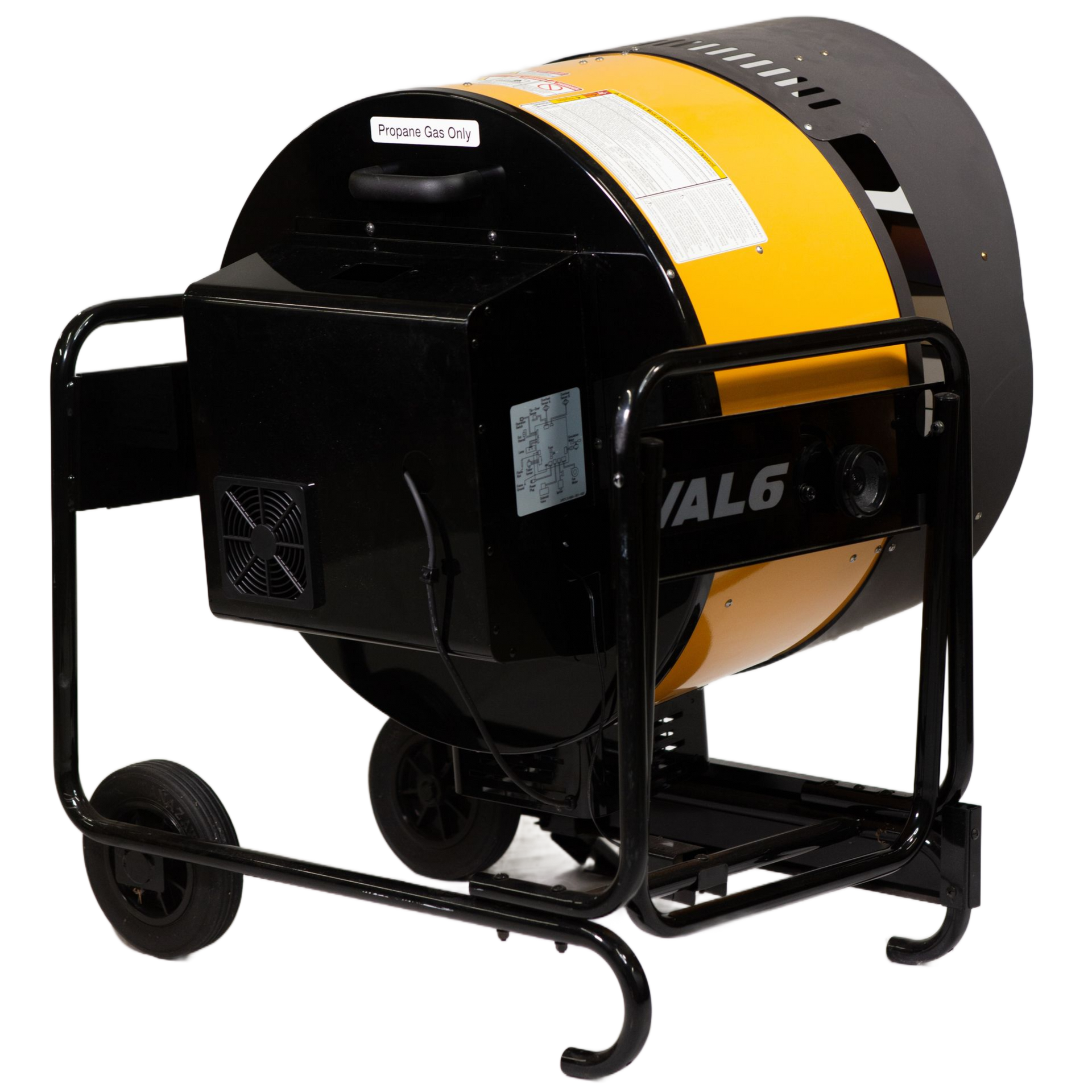

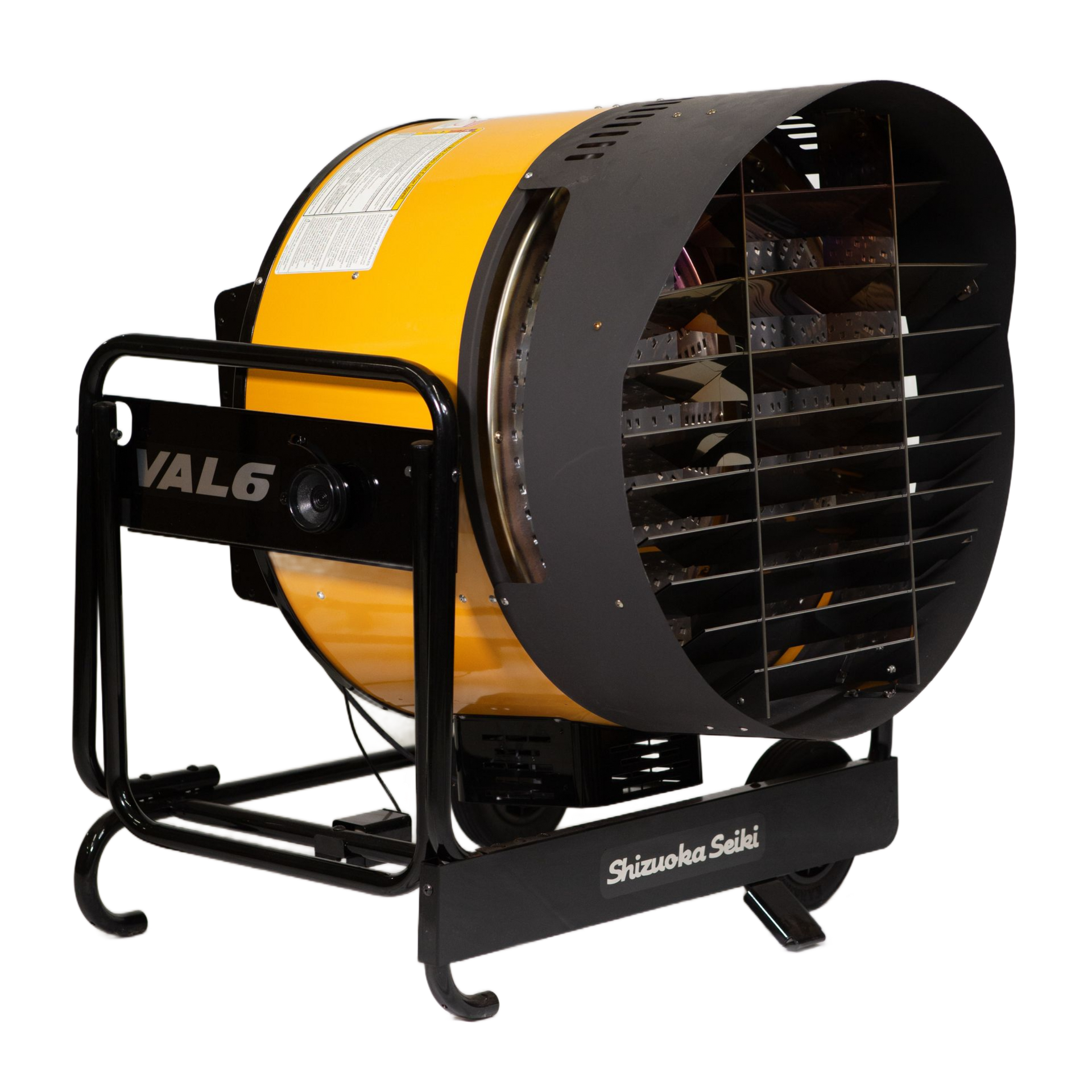

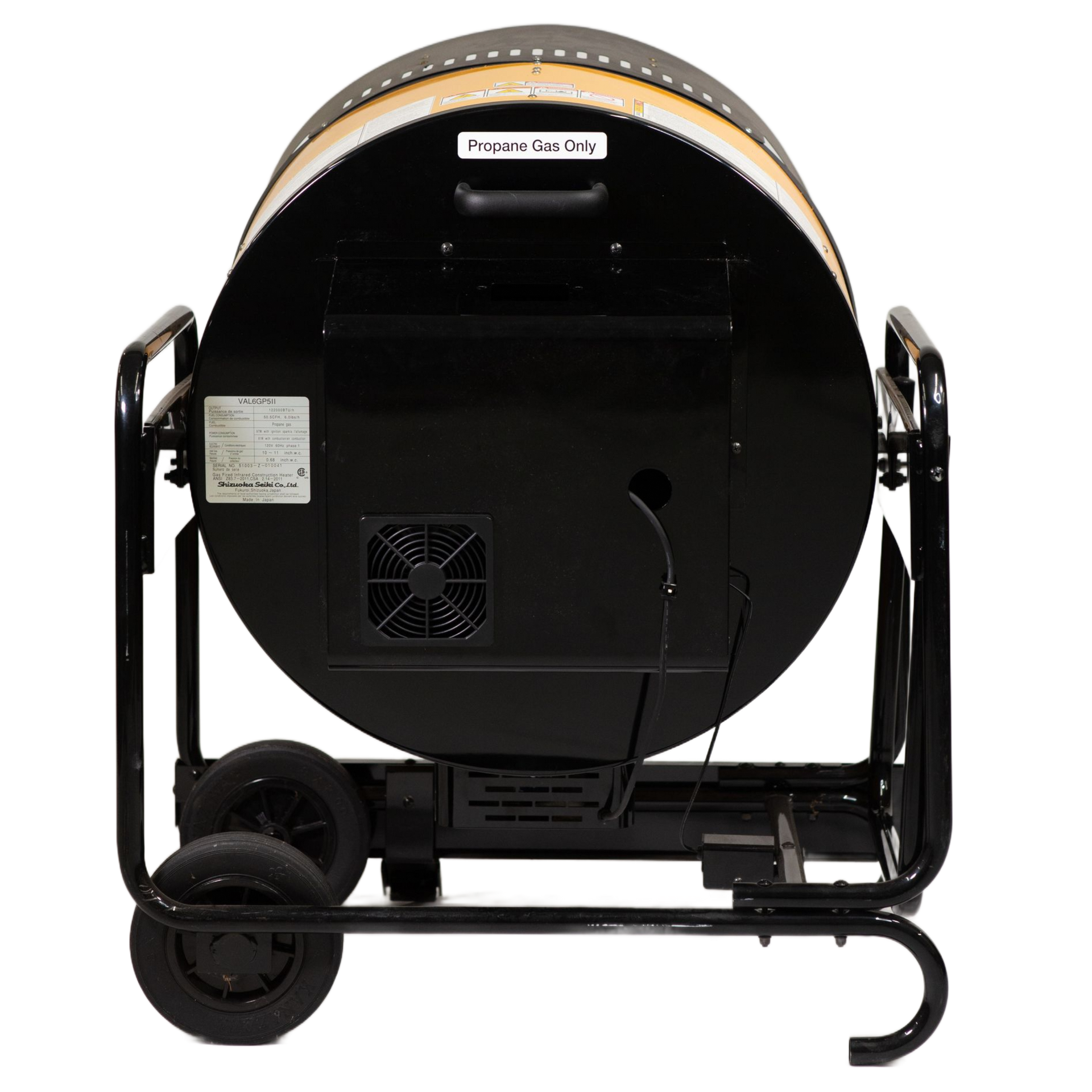

GP5II
The GP5II (propane) is the newest model produced for the Val6 series. It incorporates a gas burner into our infrared heater technology as it utilizes a premixed combustion burner that creates a blue flame due to premixing the fuel gas and air in advance. This means virtually silent operation and clean combustion.
Advantages
Specifications
Applications
Downloads
CLEAN COMBUSTION - The efficiency of our premixed gas combustion system means the GAS VAL6 produces less than 1 ppm of carbon monoxide - 10-20 times less than typical torpedo-style heaters.
QUIET OPERATION - The premixed gas combustion allows VAL6 GP5 to minimize operation noise, coming in at about 60dB as compared with a typical forced air heater, at 75dB, or more.
ADJUSTABLE ANGLE - Ther vertical angle of the radiation disk is adjustable up to 90 degrees.
| Spec | GP5II |
|---|---|
| Heat Output | 122,000 BTU/hr 35.8kW |
| Fuel | Propane Gas |
| Fuel Consumption | 50.5 CFH, 6.0 lbs/hr |
| Power Source | 120V 60 Hz |
| Power Consumption (in igniting) | 97W |
| Power Consumption (in operation) | 81W |
| Noise Level | 60 dB (A) |
| Dimension (H x W x D) | 35.3 x 31.7 x 30.3 (inch) |
| Weight | 110.2 lbs |
| Safety Devices | Tip over detection, Overheat protection, Auto-restart prevention Fuse |
| Accessory | |
| Type | Infrared Propane Gas Heater |
| Availability | YES |
Below are practical applications of how GP5 II can serve you and your needs.
- Heating in a large warehouse
- Warming up machines and personnel
- Winter construction: heats up materials, machines, and working sites
- Surface drying
- Personal heating
