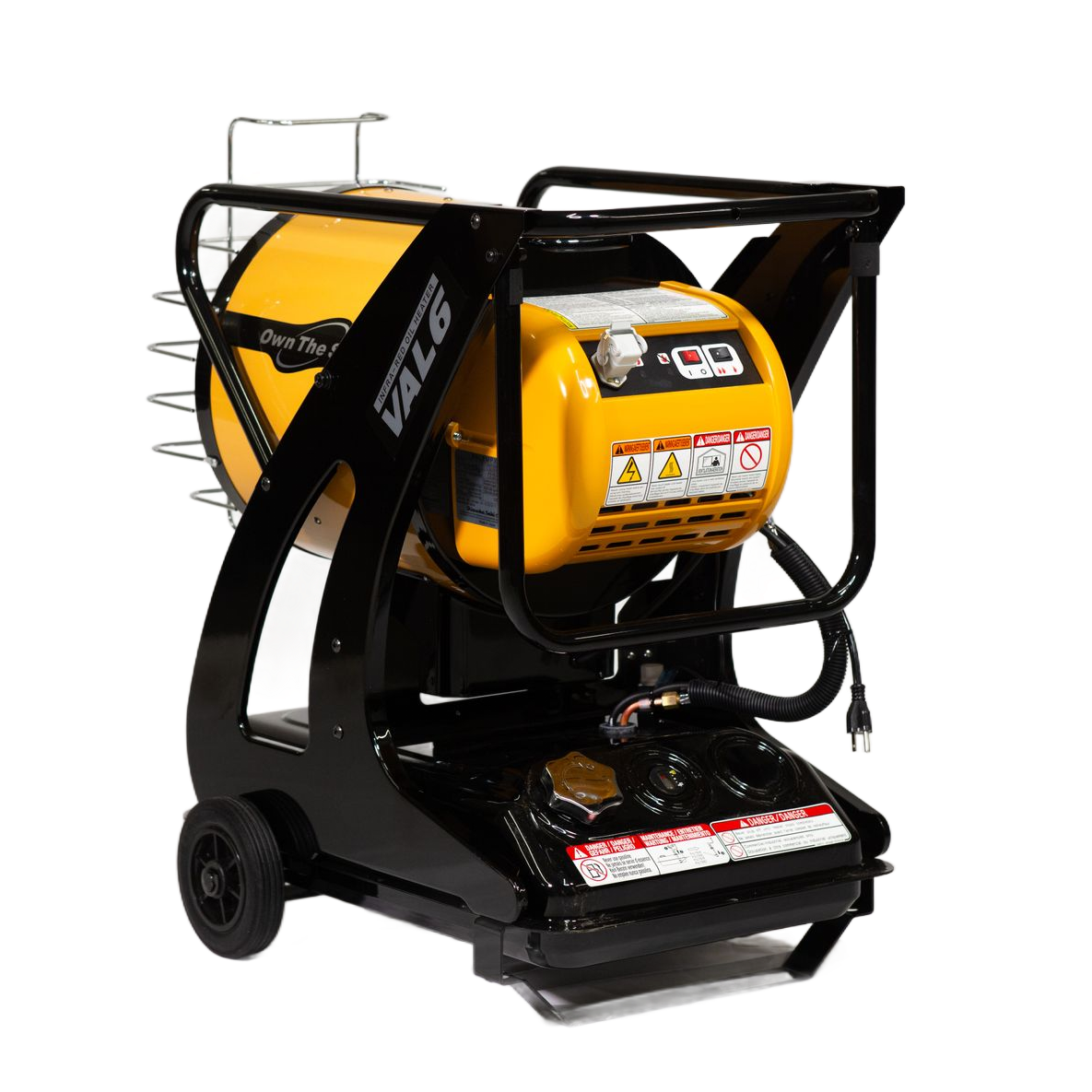

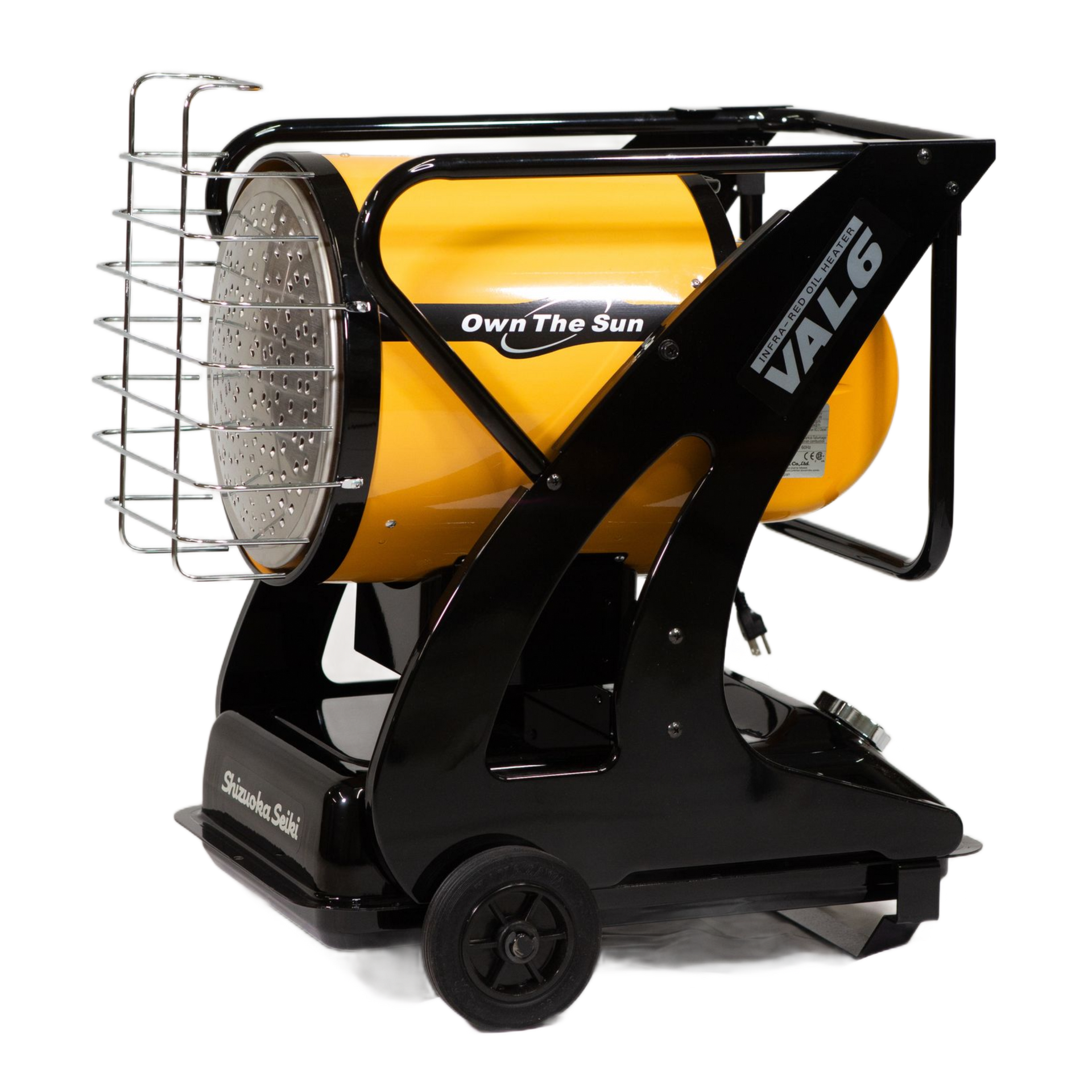

MPX

MPX is the reflection of 35 years of technological advancement. Combing two worlds, Infrared and convectional heating system, the MPX with its compact size can still be used for commercial grade applications as well as applications requiring limited space.

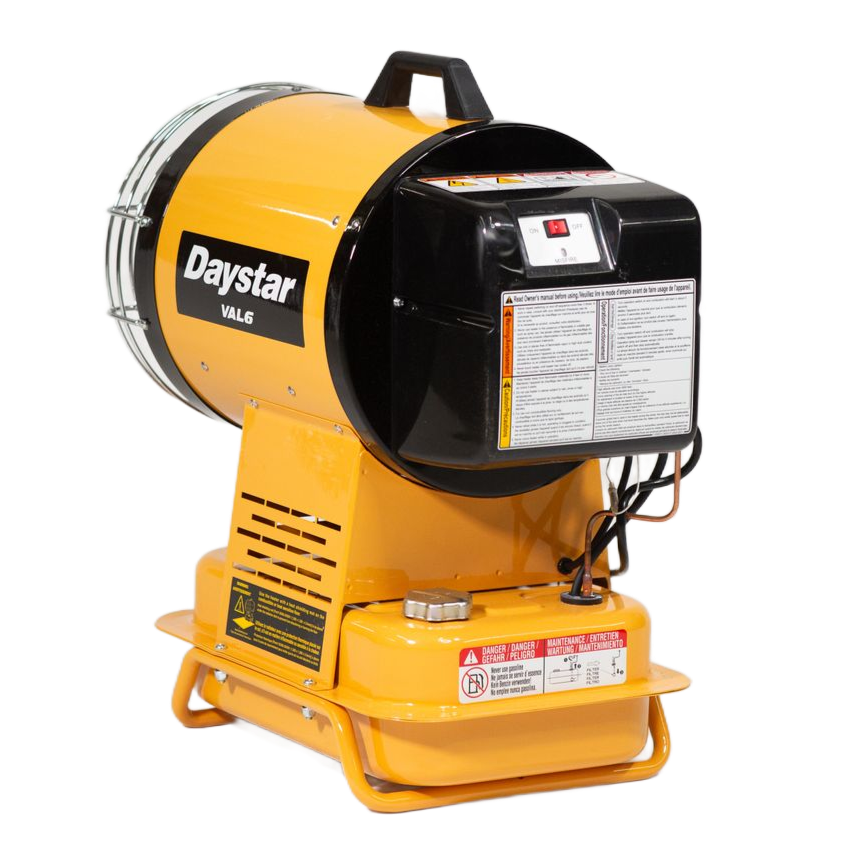

Heat from air and radiant energy resulting in the highest efficiency heater, the MPX. MPX equips a larger radiation disk and improves combustion efficiency by 13% and is able to provide more heat further away compared to the Daystar.
Advantages
Specifications
Applications
Downloads

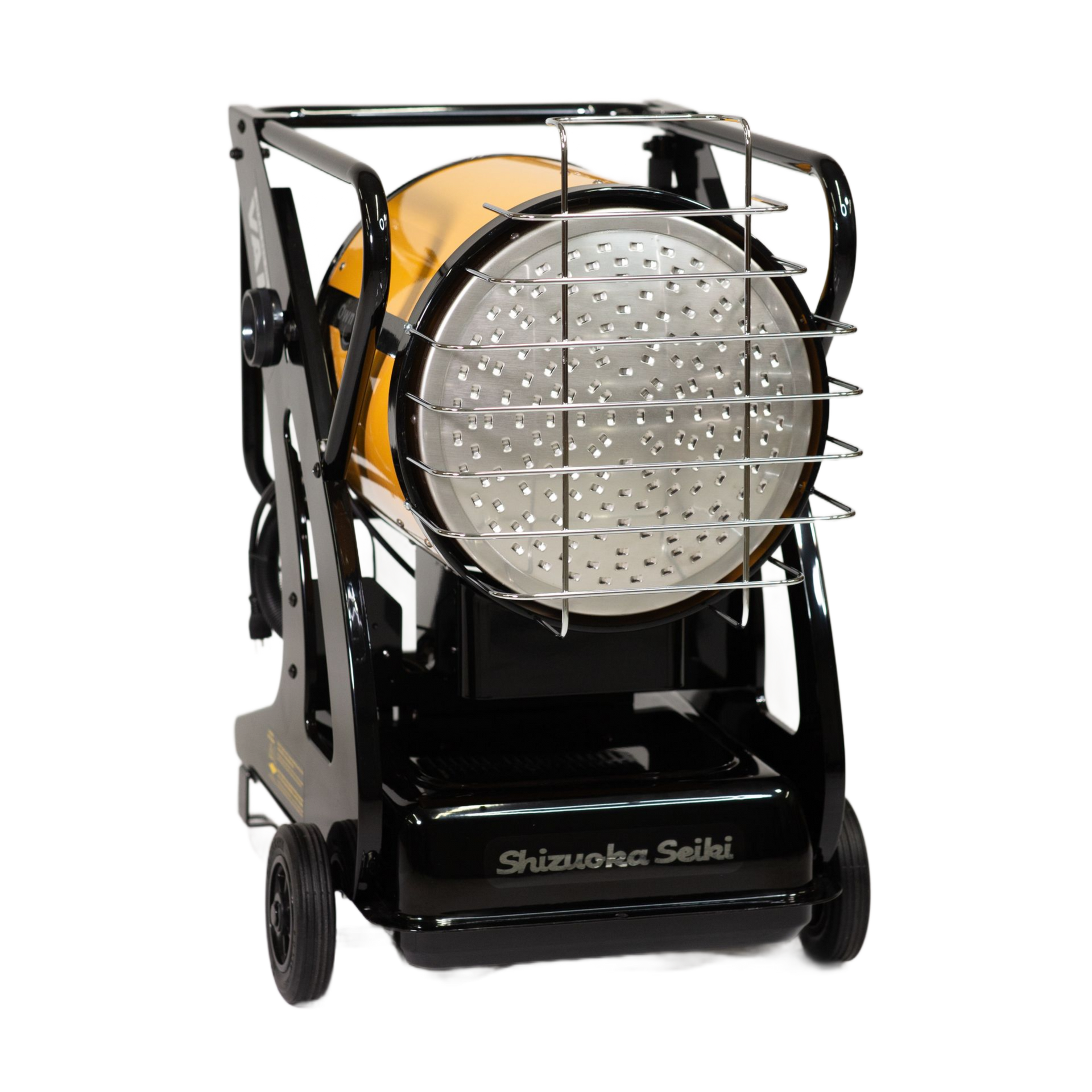

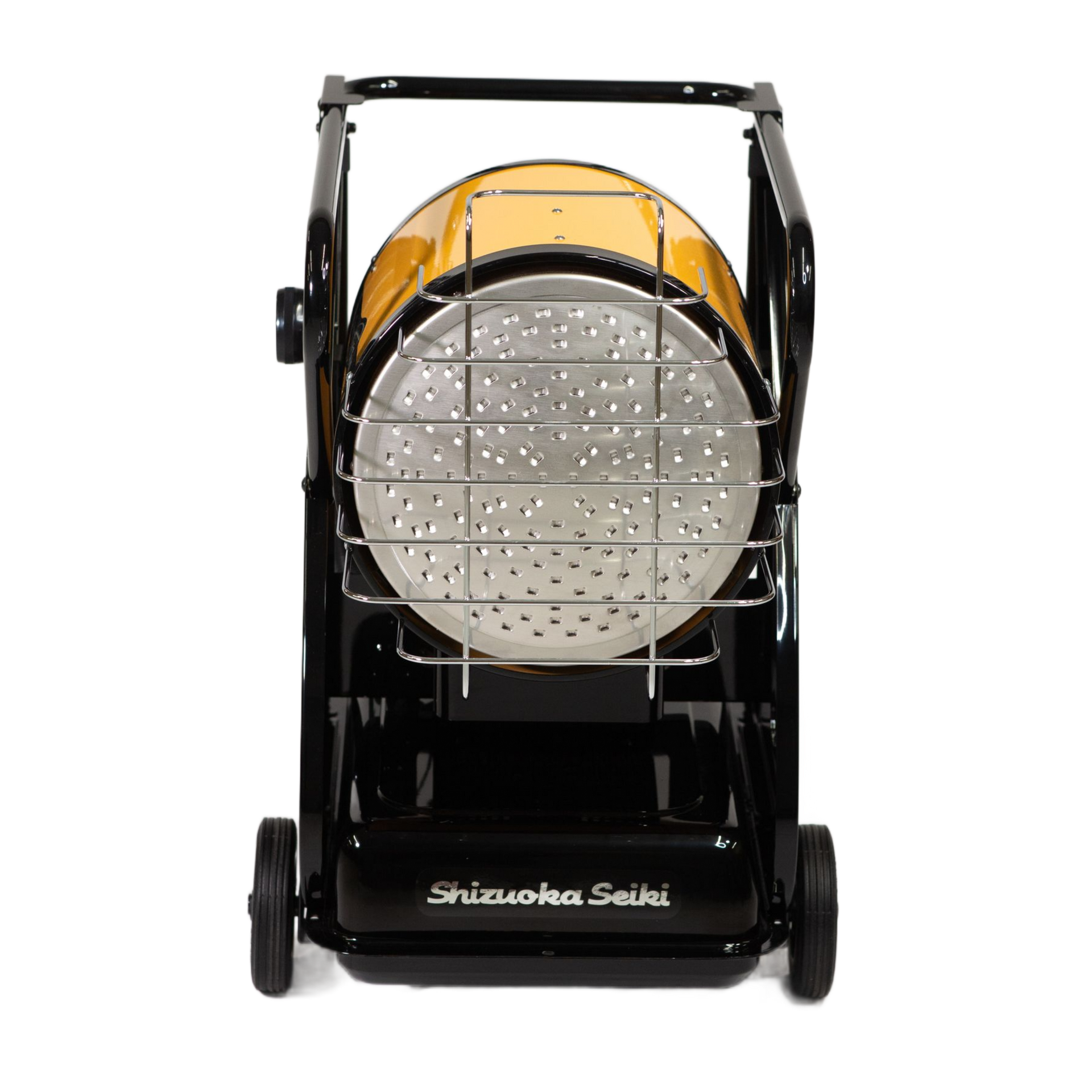

- LARGER RADIATION DISK – Compared to our regular VAL6 series, the radiation disk is 20% larger. Because of this, the EPX is able to radiate the infrared heat to objects further and wider away.
- HIGH/LOW OUTPUT CONTROL – The EPX has an output control that enables its user to choose between a high or low output thus making it very economical.
- LONG OPERATIONAL TIME – With a 15 gallon tank, the EPX is able to operate continuously for 20 hrs on the low output setting and 15 hrs on the high output setting. This enables it to operate all night long without refueling.
- BUILT IN HEATER FOR FUEL LINE – As ambient temperature decreases, viscosity increases, to counterbalance this effect, a heater is built into the fuel line to keep the fuel moving smoothly.
- BUILT IN THERMOSTAT – The surrounding temperature can be maintained by the built in thermostat. An external thermostat can also be attached via a connector to control temperatures that are a distance away.
- ADVANCED MONITORING SYSTEM – Color indication lamps are equipped in the main control panel. Not only does this make the mode of operation available, but prompt troubleshooting is now possible by attaining precise information via various safety devices.
| Spec | MPX | |
|---|---|---|
| Heat output | High | 67,500 BTU/hr (19.8kw) |
| Heat output | Low | 60,000 BTU/hr(17.6kw) |
| Fuel | Diesel or Kerosene | |
| Tank capacity | 6.6 gallons | |
| Fuel consumption | High | 0.48 gal/hr |
| Fuel consumption | Low | 0.42 gal/hr |
| Continuous operating time | High | 13.7 hours |
| Continuous operating time | Low | 15.7 hours |
| Power source | 100V 60Hz | |
| Power Consumption (in ignition) | 110W | |
| Power Consumption (in operation) | 145W | |
| Airflow | 110 CFM | |
| Operating Noise Level | High | �59.4 dB |
| Low | 57.8 dB | |
| Dimension (H x W x D) | 28.4 x 20.5 x 26.6 (inch) | |
| Dry weight | 70.5 lbs | |
| Adjustable Disk Angle | Vertical angle of radiation disk can be adjusted up to 45 degrees | |
| Safety devices | Tip-over, Flame monitor, Electrical system protection, Overheat | |
| Type | Infrared Radiant Heater | |
| Carbon Monoxide Density | 0ppm |
Below are practical applications of how EPX can serve you and your needs.
- Heating in a large warehouse
- Warming up machines and personnel
- Winter construction: heats up materials, machines, and working sites
- Surface drying
- Personal heating
