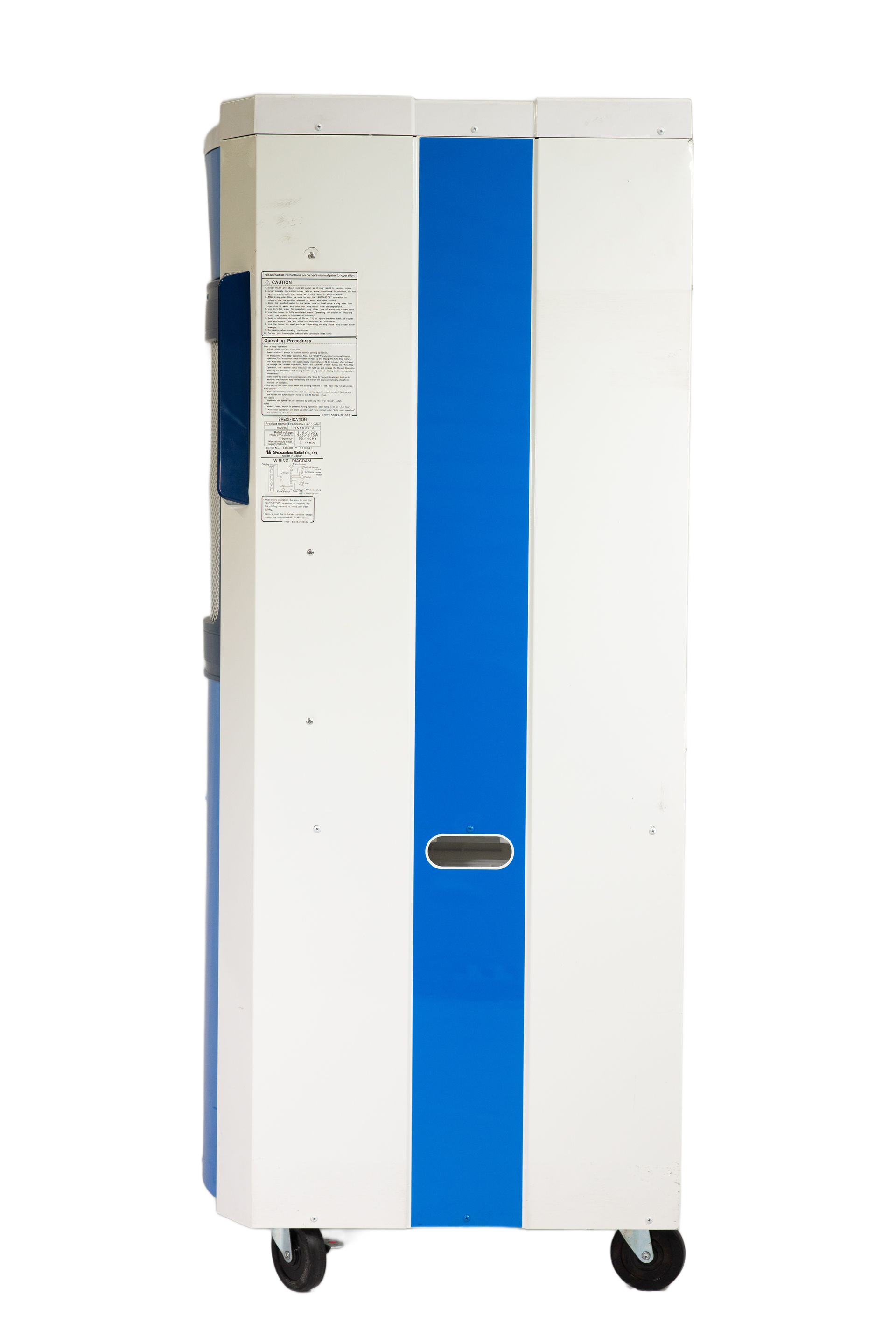

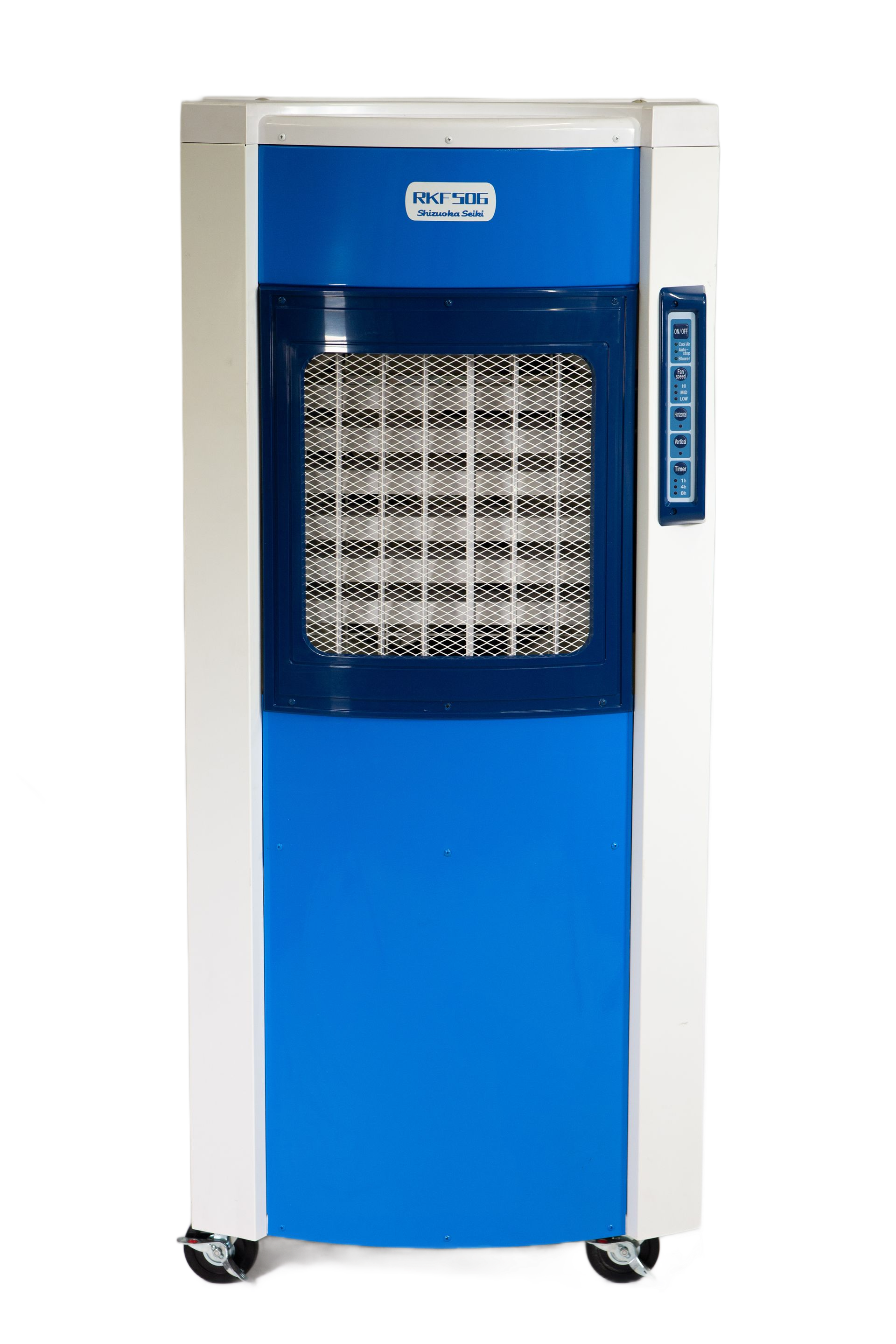

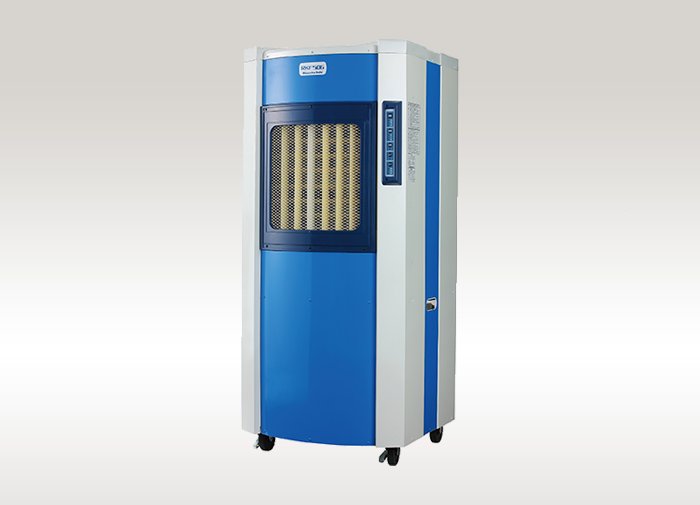

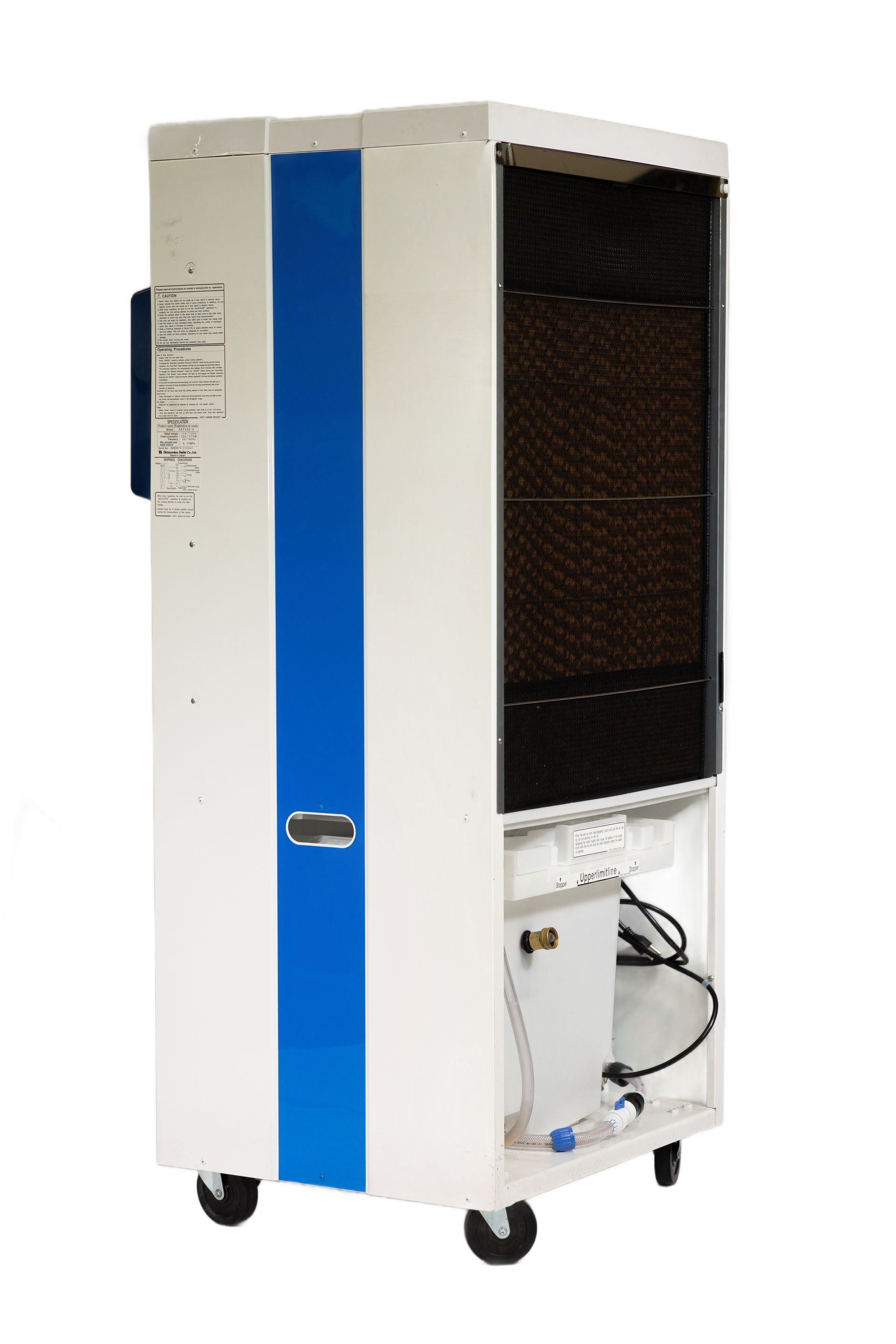

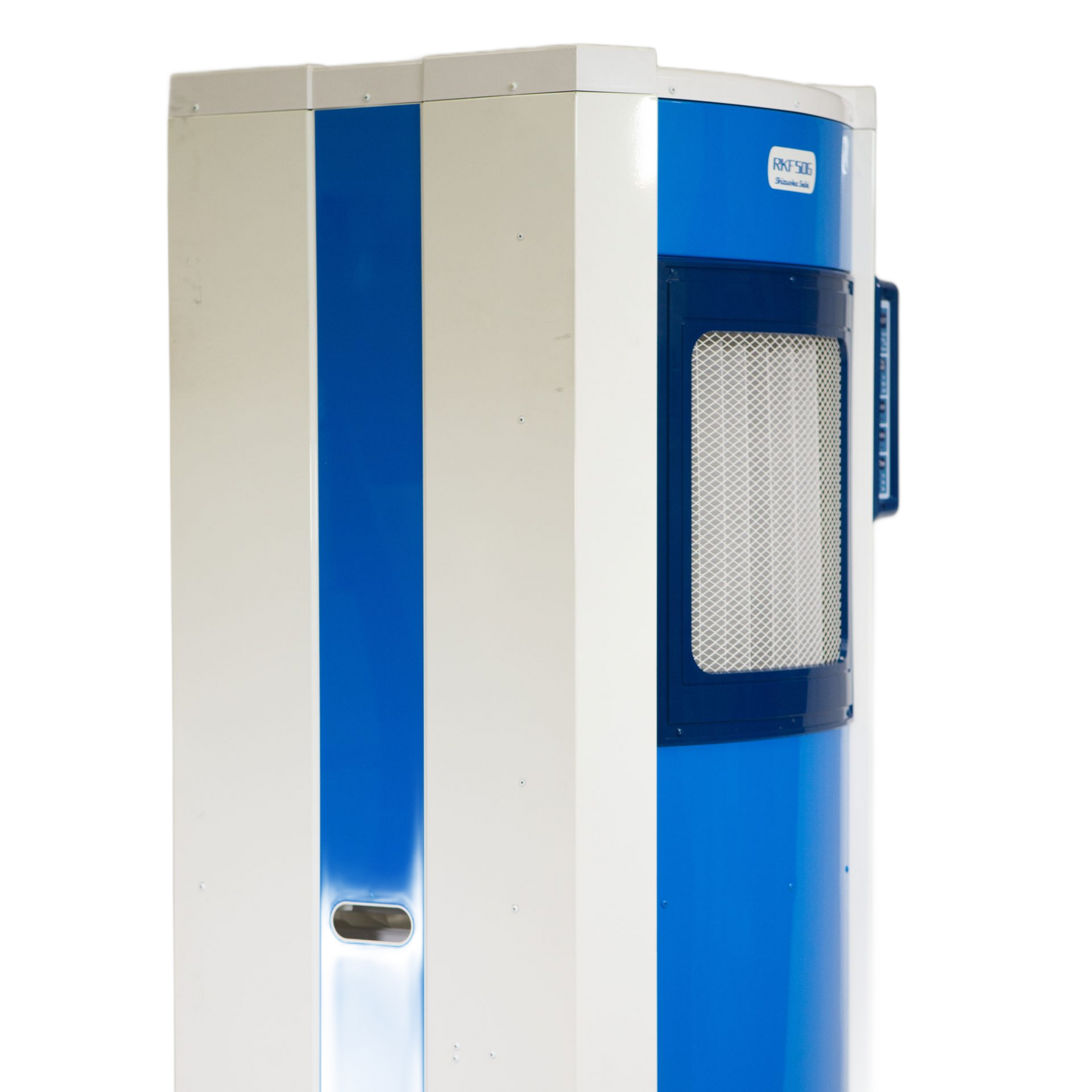

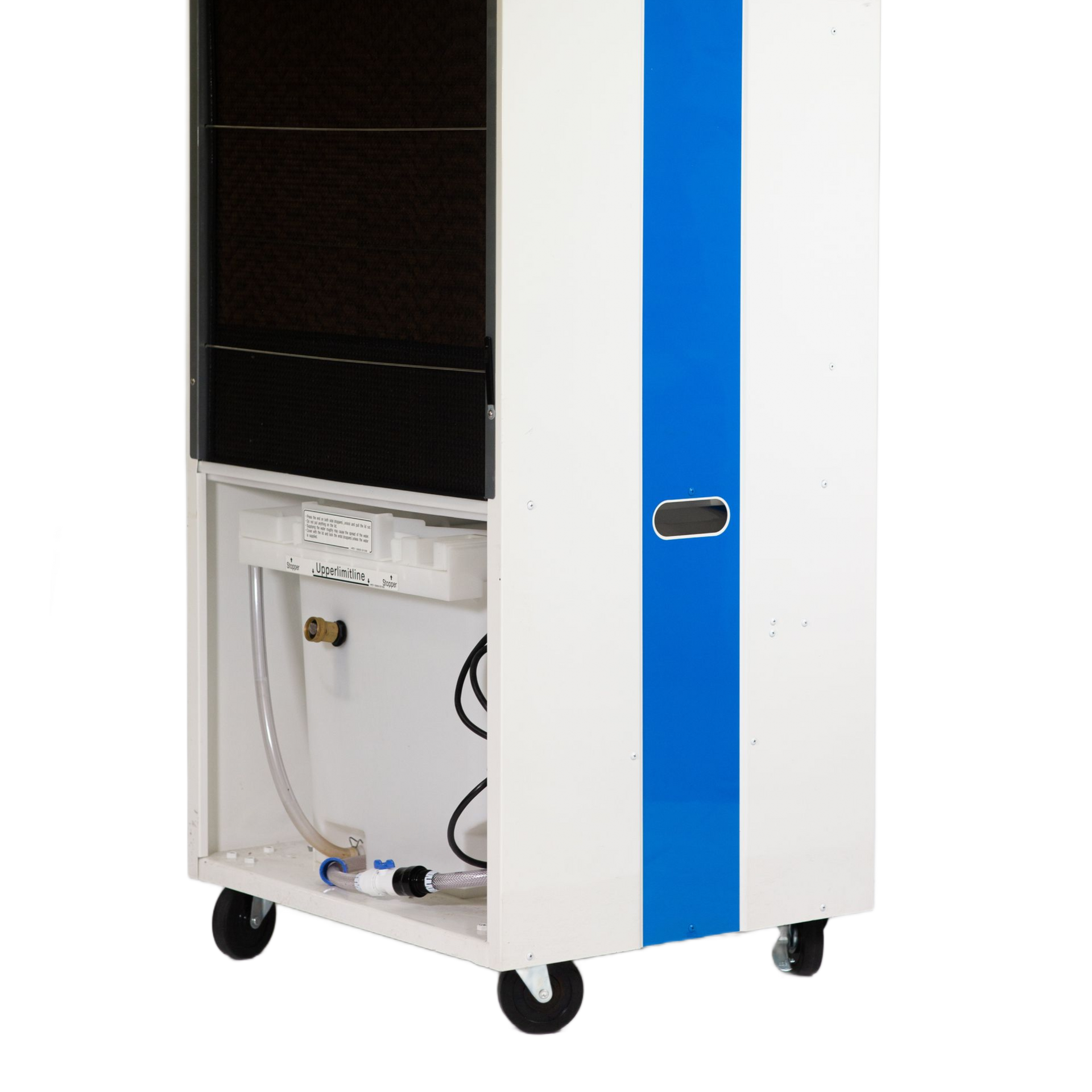

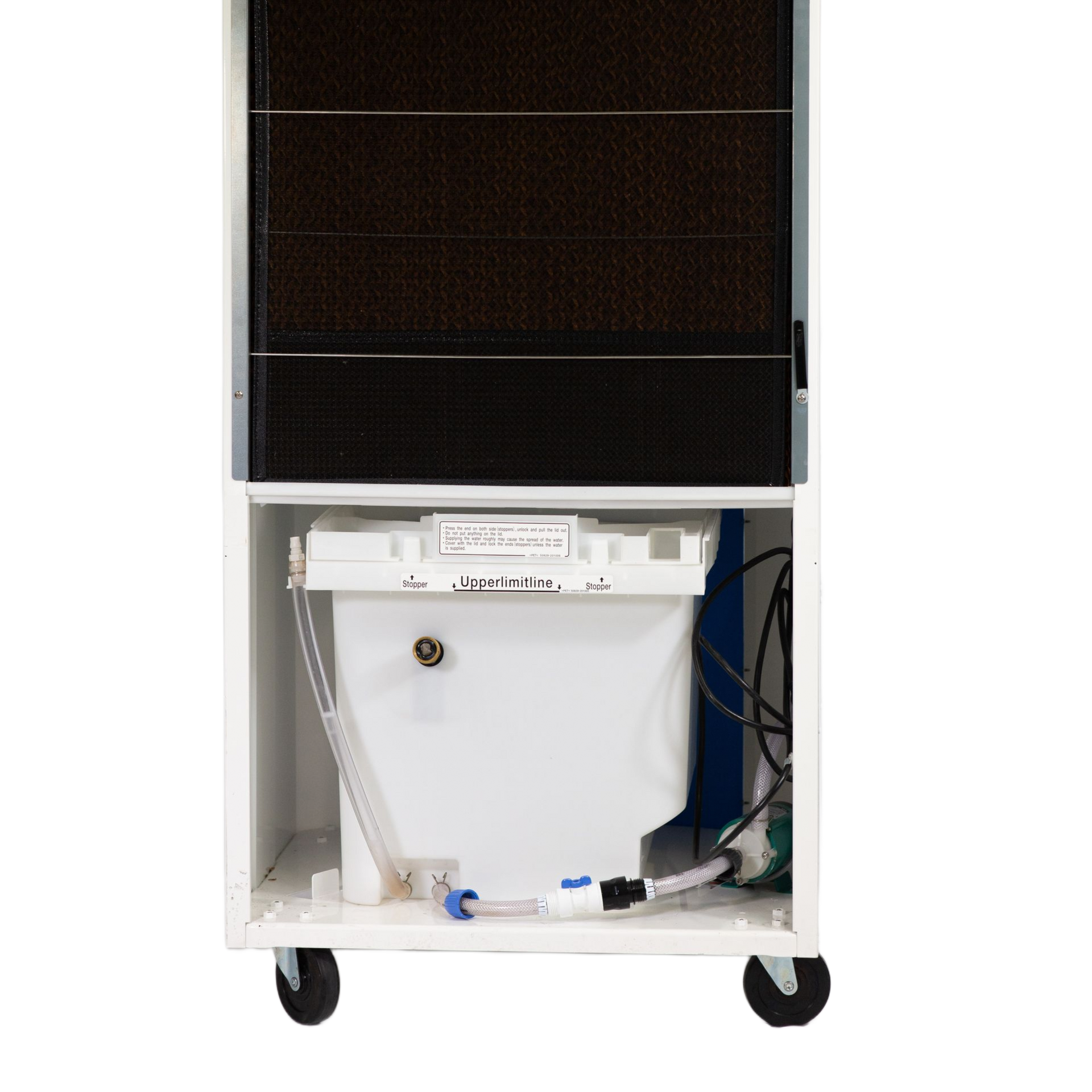

RKF 506A

NEWLY UPGRADED!!!
The RKF Series has adopted the natural cooling phenomenon from a waterfall and applied it to its cooler which creates a comfortable working environment. Cooling air by vaporizing water, this vaporization cooling system emits no heat exhaust, is earth friendly and health-oriented.
Advantages
Specifications
Applications
Downloads
ECONOMIC EFFICIENCY: Power consumption of RKF is very little because it creates cool air by natural principles. Therefore, RKF series can save operating costs drastically compared with a typical air conditioner.
NO EXHAUST HEAT: RKF series produces comfortable and natural cool air and its huge airflow carries a long way. RKF never emits exhaust heat unlike air conditioners, because RKF is not equipped with a compressor.
EARTH-FRIENDLY PRODUCT: Because it consumes less power, RKF is an energy-saving product. Contributes to the reduction of CO2. In addition, RKF does not have a refrigerant gas such as flon.
VARIABLE WIND DIRECTION: Auto-swing mechanism enables wind to blow in the range of 80 degrees to the right or left. In addition, the user can direct the wind 30 degrees vertically by louver.
EASY TRANSPORT: The RKF is equipped with casters for easy moving.
ADJUSTABLE SPEEDS: RKF features an easy touch button selector for high, medium or low air volumes.
| Spec | RKF506?-A |
|---|---|
| Power source | 60Hz |
| Power consumption | 510W |
| Cooling capacity *1 | 8.6kW |
| Air flow (MAX) | |
| Amt. of water evaporation *1 | 12.2 liters/ 3.2 gallons |
| Tank capacity | 50 liters / 13.2 gallons |
| Continuous operating time *1 | 4.0 hours |
| Safety devices | Fuse, Water shortage detection, Motor overheat protection |
| Operating Noise Level | 68 dB(A) |
| Dimensions (H x W x D) | 61.6 x 26.5 x 25.9 (inch) |
| Dry weight | 163 lbs |
| Remarks | *1 The above specifications are derived when the temperature of air at inlet is 30C (86F) and its relative humidity is 50%. |
| Type | Evaporative Air Cooler |
Below are practical applications of how EPX can serve you and your needs.
- For workplaces such as production lines, factories and warehouses
- For cooling mechanical equipment and products
- For indoor or outdoor events
- For cooling down athletes
